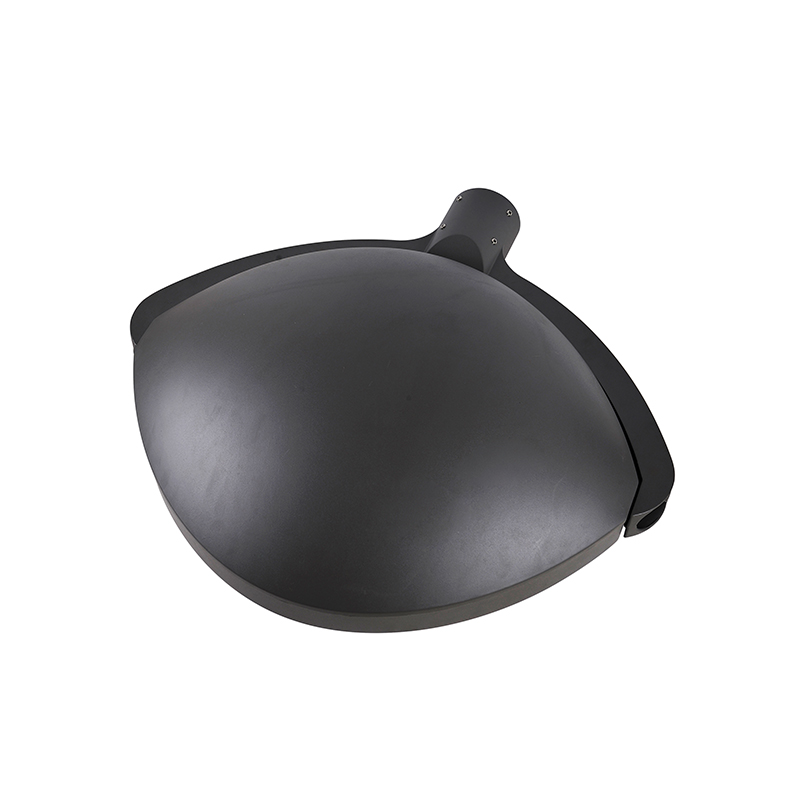

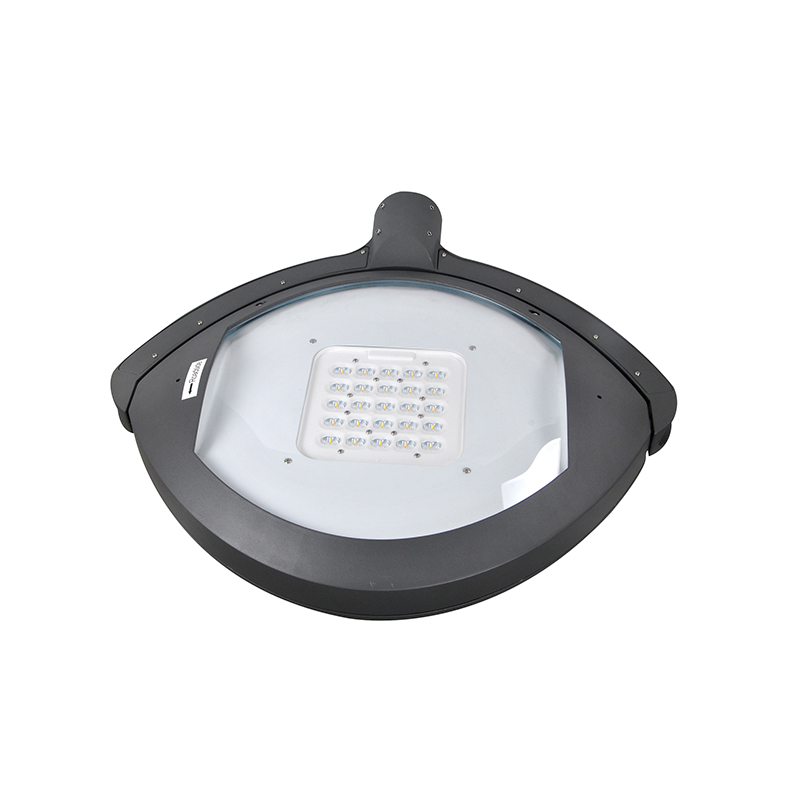

YMLED-6113B Post Top Park lux Outdoor Led Garden Lamp

The YMLED-6113B est a summo-escendo ducatur platea lucis destinata hortis et hortis velit, aestheticis et concretis coniungendis. Summus qualitas DUXERIT assulas ut Philips 5050, CREE XTE, CREE XPG, vel Ledstar 5050, offerens selectabiles CRI (Color Reddens Index) de 70 vel 80, cum colore temperatura per 2200K ad 6500K ad occurrendum necessitates illustrandas variarum missionum.

Corpus luminaire aluminium mori-cast (6063-T5) sustinet RAl color card customizationem et lineamenta pulveris polyester UV resistentia efficiunt. Ad libitum corrosionis resistentia curatio cum super 1000 horis salis imbre probatio praesto est. Copia potentiae cum AC 100-277Vac, 50/60Hz compatitur, cum spatium 50,000 horarum excedentes ad 25°C.

Graduum tutela includunt resistentiam pulveris IP65 et aquae resistentiam et resistentiam impulsum IK08, cum temperatura operante range of -30°C ad 50°C. Optiones notae includunt 110kV overvoltage tutelae, 1DALI/0-10V/PWM/4Di interfacies obscurantis, 15-7 paxillus NEMA/Zhaga connectens et integrationem sensorem, et rete pondus 16.2/14.2 kg, faciens certum electionem paradisi et horti lucendi.

PREV：YMLED-6132 Mashroom Figura DUXERIT Outdoor Garden Lumina
DEINDE：YMLED-6113A Aluminium Die-jecit Aluminium LED Landscape Garden Lumina
Proprium

CRI Color Reddendo Index: 70，80（Libitum
DUXERIT Chips: Philips5050, CREE XTE, CREE XPG, Ledstar 5050
CCT: 2200K-6500K
Corpus Materialis: Die-cast aluminium，6063-T5
RAL perficiendum petentibus; anti-UV polyester pulveris superficies efficiens, salis imbre resistentia per 1,000 horas (libitum)
Virtutis copia: AC 100-277 Vac; 50/60 Hz.
Vita utilis >   50,000h (Ta= 25°C)
IMPERVIUS Praesidium & Impact Praesidium Rating: IP65/IK08
Overvoltage praesidium: 10kV (libitum)
Temperatus operans: -30°C ad 50°C
Net pondus: 16.2/14.2(kgs)
Optiones praesto: DALI, 0-10V, PWM,  4Di.
Ad libitum: 5 ad 7-pinum NEMA iungo, Zhaga, et sensoriis

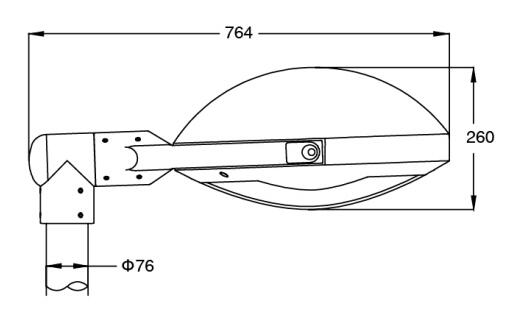

Product Dimensiones

Technical Parameters
Product Code Rated Power DUXERIT Qty Luminous Flux G.W/N.W stipare Location Loading Qty
YMLED-6113B (16) 30W 16 3600 16.2/14.2(kgs) 715x685x280mm 192PCS/20'GP
459PCS/40'HQ
YMLED-6113B(20) 40W 20 4800 16.2/14.2(kgs) 715x685x280mm
YMLED-6113B(24) 55W 24 6930 16.2/14.2(kgs) 715x685x280mm
Polar Diagram
Materia: PC
Angulus: TYPE2
Chip: 5050 3030×4 7070
Size: 50×50
Ordo Codicis: 3292
Materia: PC
Angulus: TYPE3
Chip: 5050 3030×4 7070
Size: 50×50
Ordo Codicis: 3293
Materia: PC
Angulus: TYPE4
Chip: 5050 3030×4 7070
Size: 50×50
Ordo Codicis: 3294
Materia: PC
Angulus: TYPE5
Chip: 5050 3030×4 7070
Size: 50×50
Ordo Codicis: 3295
Materia: PC
Angulus: 100×160
Chip: 5050 3030×4 7070
Size: 50×50
Ordo Codicis: 2581
Commodum
  • IP65 IK08 Apta ad institutionem velit, cum resistentia maxima
  • DALI-2 Dimmable version available
  • RAL metam ad petitionem
